Stainless Steel Backflow Preventer Check Valve DF41X-16P with PN16 Pressure Rating
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | YOUWEI |
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| 재료 | 주조,황동,스테인레스강,연성철,GGG50 | 포트 크기 | DN50-DN1200,표준,2"-24",DN50-800,3/4" |
|---|---|---|---|
| 힘 | 수동,전기 작동식,유압식,핸드휠 작동식,GO | 압력 | 중간 압력, 저압, PN10-16, PN1.0/PN1.6,250PSI |
| 미디어의 온도 | 중온,상온,저온,-10~100℃ | 메디아 | 물, 기름 등, 가스 등 |
| 애플리케이션 | 일반, 관개, 물 분배, 산업, 물 시스템 | 표준 또는 비표준 | 기준 |
| 기준 | DIN, 학사, JIS, F5; AWWA C509/C515; ANSI, DIN3352 | 크기 | DN50 ~ DN 1000,2''-24'' |
| 연결 | 플랜지 끝, 이중 플랜지, | 본체 재질 | 연성이 있는 철, DI/CI, 주철, 황동 |
| 색상 | 파란색, 고객의 요청, 고객의 요구 사항, 노란색, 회색 | 중간 | 물, 기름, 가스 |
| 유형 | 체크 밸브, 상시 열림, 2방향, 비상승 스템/ NRS | 밸브 유형 | 체크 밸브 |
| 밀봉하다 | 고무 라이닝, 금속, PTFE | ||
| 강조하다 | Stainless Steel Backflow Preventer,PN16 Check Valve,DN100 Backflow Preventer |
||
제품 설명

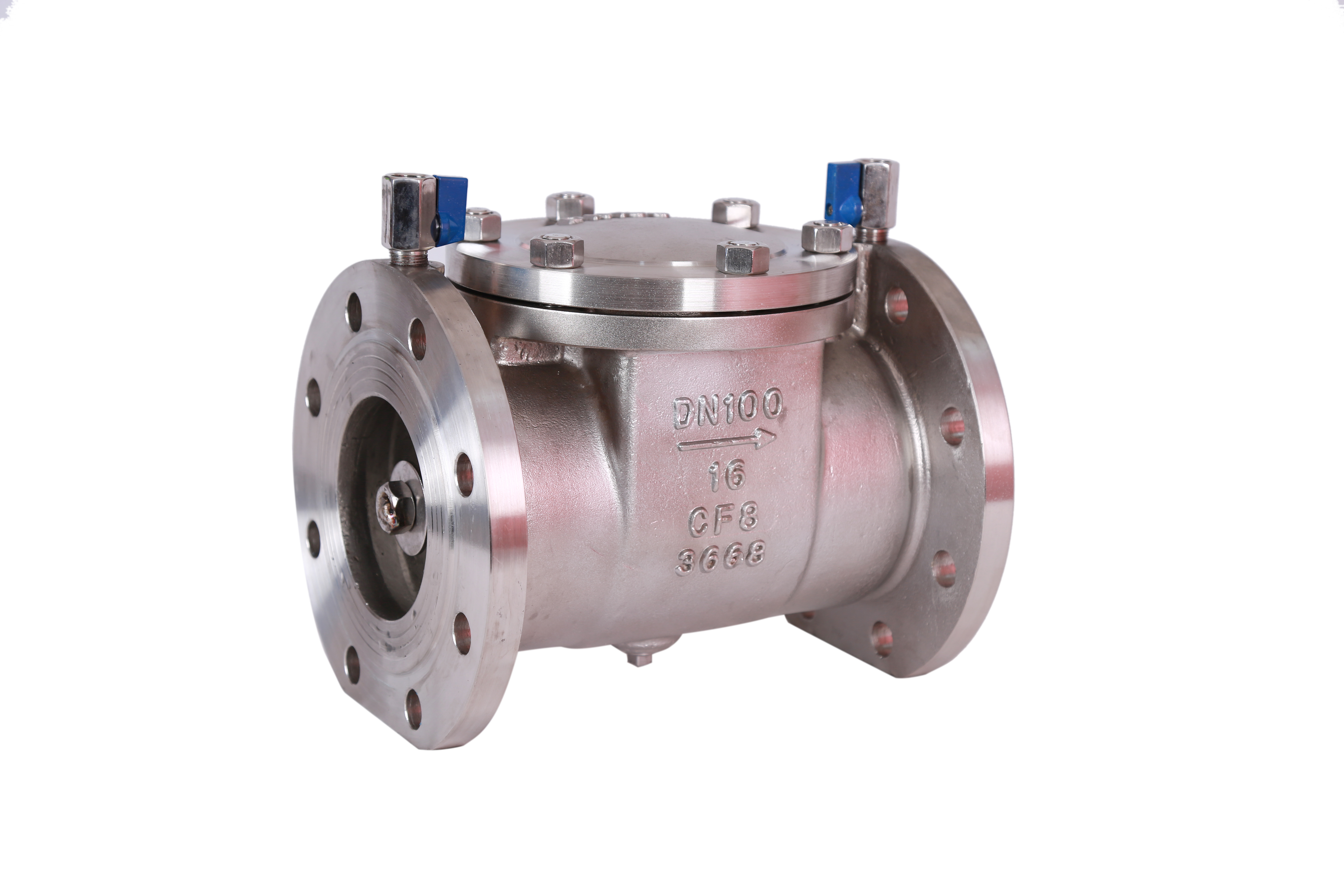

Stainless Steel Backflow Preventer DF41X-16P DN100 PN16 (CF8)
Product Overview
The DF41X-16P Backflow Preventer is a compact, lightweight, and high-performance check valve engineered to prevent reverse flow in pipeline systems. This automatic valve ensures one-directional media flow and protects against backflow contamination in water supply, drainage, firefighting, HVAC, and industrial piping applications.
Technical Specifications
Model Number: DF41X-16P
Body Material: CF8 (AISI 304 equivalent) Stainless Steel
Pressure Rating: PN16 (16 bar)
Size: DN100 (approximately 4 inches)
Connection: Flanged
Key Features & Benefits
Excellent corrosion resistance and durability with CF8 stainless steel construction
Compact, space-saving design for easy installation in tight spaces
Automatic operation requiring no external power source
Tight sealing performance with minimal head loss
Compliant with international backflow prevention standards
Lightweight construction compared to traditional assemblies
Typical Applications
- Potable water supply systems
- Fire protection pipelines and sprinkler systems
- Industrial process water lines
- Irrigation and drainage systems
- HVAC and building services piping
Installation & Maintenance
Install in horizontal or vertical positions with flow direction as indicated by the arrow on the valve body. Ensure adequate clearance for inspection and maintenance access. Regular inspection is recommended to maintain optimal performance and reliability.
Package Contents
1 * DF41X-16P Backflow Preventer
Note: Flanges and gaskets not included unless specified.
Note: Flanges and gaskets not included unless specified.
