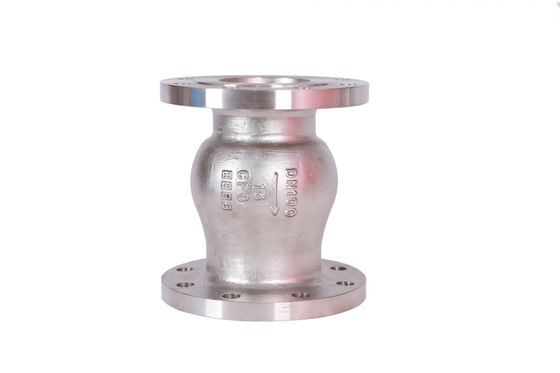

304 Stainless Steel Silent Check Valve with Non-Slam Closure and Low Head Loss for Corrosive Applications
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | YOUWEI |
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| 재료 | 주조, 황동, 스테인레스 스틸, 연성 철, GGG40 | 포트 크기 | DN50-DN1200,표준,2"-24",DN50-800,3/4" |
|---|---|---|---|
| 힘 | 수동,전기 작동식,유압식,핸드휠 작동식,GO | 압력 | 중간 압력, 저압, PN10-16, PN1.0/PN1.6,250PSI |
| 미디어의 온도 | 중온,상온,저온,-10~100℃ | 메디아 | 물, 기름 등, 가스 등 |
| 애플리케이션 | 일반, 관개, 물 분배, 산업, 물 시스템 | 구조 | 게이트, 나비, 비 상승 게이트 밸브 |
| 표준 또는 비표준 | 기준 | 제품명 | 게이트 밸브, 비 상승 줄기 DN40-DN600, DIN/BS 이중 소켓 유형 탄력 있는 시트 게이트 밸브, 강철 2cr13 줄기 핸드휠 api 6a 웰헤드 안전 게이트 밸브 줄기 |
| 기준 | DIN, 학사, JIS, F5; AWWA C509/C515; ANSI, DIN3352 | 크기 | DN40-DN600,DN50 ~ DN 1000,2''-24'',DN15 To100 |
| 연결 | 플랜지 끝, 이중 플랜지, BSP, 소켓 끝, 암나사 | 본체 재질 | 연성이 있는 철, DI/CI, DI, 주철, 황동 |
| 색상 | 파란색, 고객의 요청, 고객의 요구 사항, 노란색, 회색 | 중간 | 물, 물, 기름, 가스 |
| 유형 | 게이트 밸브, 상시 열림, 2방향, 비상승 스템/NRS | 밸브 유형 | 문짝 밸브 |
| 밀봉하다 | 고무 라이닝, 금속, PTFE | ||
| 강조하다 | 304 Stainless Steel Silent Check Valve,Silent Non-Slam Closure Check Valve,Low Head Loss Check Valve |
||
제품 설명
304 Silent Check Valve
Product Overview
The 304 Silent Check Valve is an advanced, hydraulically optimized check valve engineered to prevent reverse flow without water hammer, shock noise, or disc slamming. Featuring a streamlined axial or tilting disc design, it ensures smooth, silent, and reliable operation in systems where noise, pressure surge, and valve wear are critical concerns. Constructed entirely from 304 stainless steel, it is ideal for corrosive, hygienic, and demanding fluid handling applications.
Key Features
- Silent, Non-Slam Closure: Unique internal design with spring-assisted or lever-weighted mechanism ensures gradual, shock-free closure even under fluctuating flow conditions.
- 304 Stainless Steel Construction: Excellent corrosion resistance, durability, and hygiene compliance for chemical, marine, food, and pharmaceutical industries.
- Low Head Loss: Streamlined flow path and optimized disc geometry minimize pressure drop and improve system efficiency.
- Maintenance-Friendly Design: In-line repairable models allow for seat and spring replacement without removing the valve body from the pipeline.
- Versatile Mounting: Can be installed in horizontal or vertical pipelines (flow direction upward).
- Long Service Life: Precision-machined seating surfaces and corrosion-resistant materials ensure reliable sealing and extended durability.
Technical Specifications
| Body & Trim Material | AISI 304 Stainless Steel |
| Seat Seal | EPDM, NBR, FKM, or PTFE (optional) |
| Spring Material | 304 or 316 Stainless Steel |
| Connection Types | Threaded (NPT/BSP), Flanged (ANSI/DIN), or Wafer |
| Size Range | ½" to 24" (DN15 to DN600) |
| Pressure Rating | Class 150 / PN16 to Class 300 / PN40 |
| Temperature Range | -20°C to +120°C (w/ elastomeric seals) | Up to 400°C (all-metal design) |
| Compliance | API 594, API 6D, ISO 5208, or as customized |
Applications
- Water & wastewater treatment plants
- HVAC, pumping stations, and booster systems
- Chemical, petrochemical, and process industries
- Marine & offshore piping systems
- Food, beverage, and pharmaceutical processing
- Fire protection and irrigation systems
Operation Principle
The valve utilizes a guided disc and a calibrated spring (or lever-counterweight) to control the closing motion. As forward flow decreases, the spring gently returns the disc to the seat before reverse flow occurs, eliminating sudden closure and associated hydraulic shock.
Benefits
- No Water Hammer: Protects pipelines, pumps, and equipment from pressure surges.
- Quiet Operation: Ideal for noise-sensitive environments such as buildings and hospitals.
- Energy Efficient: Reduced pressure loss lowers pumping costs.
- Low Maintenance: Non-slamming action drastically reduces wear on sealing surfaces.
- Safe & Reliable: Prevents backflow contamination and system failure.
Installation Notes
• Ensure proper flow direction alignment with valve arrow.
• Support the valve appropriately to avoid pipeline stress.
• For vertical installation, confirm valve orientation suitability with manufacturer.
• Recommend installing downstream of pumps or system outlets where flow reversal risk exists.
